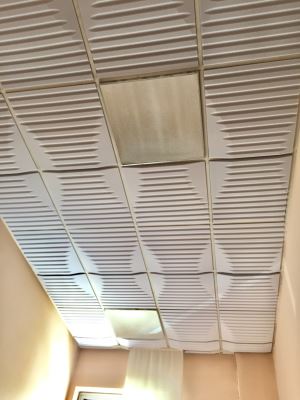

NOVAELEMENT FLEX

New exclusive shape designed to combine acoustic functionality with a modern and pleasant aesthetic. Basotect��� melamine resin elements in light gray or white color for false ceilings and walls. CLASS 1 Fire resistance. The elements can be glued or laid on a 24 mm exposed T shaped structure.

• Design
  FLEX
• Dimiensions
  600 x 600 mm. for gluing
  593 x 593 for 24 mm structure
• Thickness
  mm. 50
• Field of use
  it allows to install suspended ceilings that can be inspected and with a high degree of soundproofing. For example: open spaces call centre, theatres, cinemas, restaurants, gym rooms, schools.
• A richiesta
  various thicknesses - Glueing

NOVAELEMENT

Bevelled edges elements for suspended ceilings and walls, made of grey coloured Basotect��� melamine resin. CLASS 1 fire resistance. The elements can be glued or laid on a 24 mm. T shaped structure.

• Design
  FLAT - DIAGONAL - CROSS - SLASH
• Dimensions
  600 x 600 mm. for gluing
  593 x 593 for 24 mm structure
• Thickness
  mm. 50
• Field of use
  it allows to install suspended ceilings that can be inspected and with a high degree of soundproofing. For example: open spaces call centre, theatres, cinemas, restaurants, gym rooms, schools.
• Upon request
  various thicknesses - Glueing

ISOELEMENT

Elements for ceilings and walls made of Novatex (polyester fiber 100%), density around 60 kg/m3, Class 1 fire resistance, Class F1 toxicity and opacity of the fumes.

• Dimensions
  CEILINGS 600x600 mm.
  WALLS 2000x1000 mm.
• Thickness
  mm. 50
• Upon request
  Other sizes, thicknesses and densities Other RAL colours

Standard Painting on view side: White
